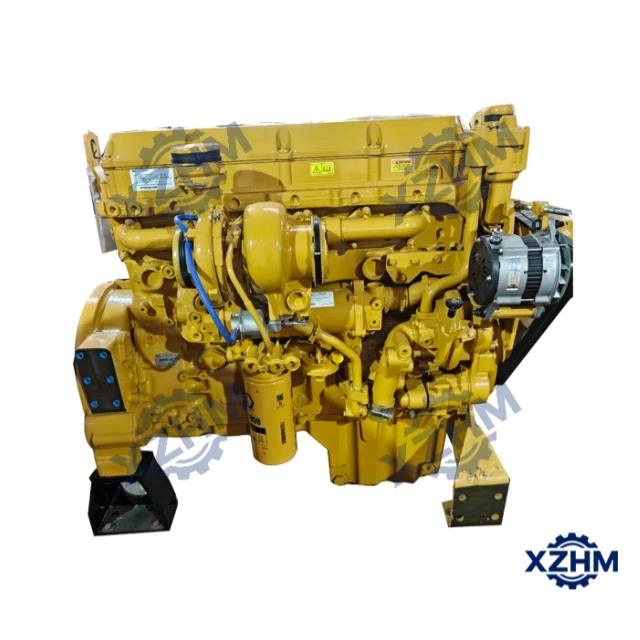

CAT ENGINE C13

CAT C13 is an in-line 6-cylinder, turbocharged and air-to-air aftercooled diesel engine with a displacement of 12.5 liters. It delivers a power range of 335–600 HP and a torque range of 1,250–2,180 LB-FT. It has been in production since 1996 and utilizes a Mechanically Actuated Electronic Unit Injector (MEUI) fuel system, which provides reliable fuel control and consistent power output. The engine is widely used in power generation, construction and mining equipment, on-highway vehicles, and marine applications.

Overhaul and Repair Kits

C13 engines are grouped by engine serial numbers, mainly covering KCB, JAM, and LEE versions, with full sets of repair kits including cylinder kits, in-frame kits, overhaul kits, and corresponding gasket sets. Cylinder kits feature reinforced structures for durability in heavy-duty working conditions. In-frame and overhaul kits come complete with standard pistons, piston pins, retainers, bearings, and full sets of seals, ready for engine teardown and rebuilding. Different serial number ranges use dedicated gasket sets to ensure reliable sealing of cylinder heads, oil pans, water pumps, turbochargers, and other components, minimizing risks of coolant, oil, or gas leaks.

Cylinder Components

C13 cylinder components include complete cylinder liners, seal rings, piston bodies, piston ring sets, piston pins, and retainers. Cylinder liners are treated for enhanced strength, and specialized O-ring seals prevent coolant leakage and oil contamination. Pistons are forged from alloy steel for high strength and thermal resistance. Matched piston ring sets ensure proper cylinder sealing and oil control. All cylinder components are supplied as 6-cylinder sets, precisely matched to the engine for complete remanufacturing or cylinder-specific repairs.

Engine Bearings

The bearing system includes connecting rod bearings, main bearings, thrust plates, camshaft bushings, and connecting rod bushings, available in standard size and oversizes of 0.51 mm and 0.76 mm to suit various wear conditions. Main and connecting rod bearings use high-load-capacity materials compatible with high cylinder pressure. Camshaft bushings are supplied in complete kits, including front, intermediate, and rear bushings to ensure smooth camshaft operation and reduce noise and wear.

Crankshaft Seals and Dampers

The crankshaft system includes front and rear crankshaft seal kits and wear sleeves to prevent oil leakage. Front and rear seals use oil‑resistant and heat‑resistant materials; some versions use a wet rear seal housing. A vibration damper is used to reduce running vibration, protect the crankshaft and related components, and improve overall stability. The crankshaft itself is a high-strength forged component designed to withstand high-torque output for long-term reliability.

Cylinder Head Components

C13 cylinder heads are available in versions for KCB, JAM, and LEE serial numbers, each with dedicated intake valves, exhaust valves, valve seats, valve guides, inner and outer valve springs, valve locks, and rotocoils. Injector tubes and seal kits are matched to specific serial number ranges to ensure reliable fuel system sealing. Cylinder head assemblies, head bolt kits, and dedicated washers follow original-equipment specifications to ensure uniform clamping force, proper cylinder compression, and effective heat dissipation. The camshaft is specially designed for precise valve timing and stable performance.

Air Intake and Exhaust System

The intake and exhaust system includes exhaust manifold stud kits, studs, spacers, washers, and nuts, suitable for low‑mount turbocharger and other layouts. Turbocharger mounting studs and nuts are made of high‑strength materials to withstand high exhaust temperatures and vibration, ensuring secure mounting. The full set of intake and exhaust hardware supports various equipment configurations, reducing exhaust leakage and abnormal noise.

Fuel System

The fuel system includes remanufactured injectors, external O‑ring kits, upper, intermediate, and lower injector seal rings, fuel transfer pumps, and fuel priming pumps. Injectors are built to MEUI specifications for stable atomization, optimized fuel consumption, and controlled emissions. The fuel transfer and priming pumps ensure consistent fuel supply. Full seal kits cover all injector sealing points to prevent fuel leakage and air ingestion.

Lubrication System

The lubrication system includes an oil pump, body-to-cover seal rings, installation kits, oil cooler cores, oil pan seals, and isolators. The oil pump provides sufficient oil flow for reliable lubrication. Oil cooler cores are version-specific to match KCB, JAM, or LEE engines, efficiently lowering oil temperature for improved durability at high operating temperatures. Oil pan seals and isolators reduce vibration, noise, and oil leakage.

Cooling System

The cooling system includes a 190° thermostat, thermostat seals, housing gaskets for both single and dual thermostats, water pumps, and water pump mounting gaskets. The thermostat accurately controls coolant circulation for fast warm‑up and stable operating temperature. Water pumps provide adequate flow for efficient heat dissipation. Gaskets are resistant to aging and high pressure, reducing coolant leakage.

Sensors

The engine is equipped with a variety of pressure sensors and temperature sensors to monitor critical parameters including oil pressure, fuel pressure, intake pressure, and coolant temperature. These sensors provide real-time input to the electronic control system, maintaining optimal engine performance. Sensors follow standard specifications for easy replacement and troubleshooting.

Gasket Sets

C13 offers both custom McBEE gasket sets and modular gasket kits, including overhaul sets, in-frame sets, cylinder head sets, fuel system sets, oil cooler sets, water pump sets, turbocharger mounting sets, and air compressor sets. Different serial number ranges and applications use dedicated gasket configurations made from heat‑resistant, oil‑resistant, and pressure‑resistant materials to ensure leak‑free repairs.
